NocPix Ace H50R Thermal Rifle Scope Review

NocPix Ace H50R Thermal Scope Review - The Nocpix Ace H50R LRF is a cutting-edge thermal rifle scope designed to deliver outstanding performance in the field. Featuring advanced technology and an array of integrated features, it sets a new benchmark for hunters and shooting enthusiasts. The Nocpix Ace H50R offers several advancements over its competitors, and we look forward to putting them all to the test. Thanks to Jason Robertson at Outdoor Legacy for making this NocPix Ace H50R Thermal Rifle Scope Review possible.

NocPix is a new line of thermal optics made and distributed in the United States by IRayUSÅ. If you are familiar with InfiRay thermal optics, you will find that many of the features apply to the NocPix line. The image, menu, and function of the Ace are very similar to the InfiRay Bolt, but new features include Ocular Zoom, integrated Laser Range Finder (LRF), and the Ballistic Calculator.

Ace H50R Design

If you’re someone who values simplicity and cutting-edge tech in your optics, you’ll love what the Ace H50R has to offer. It is built with features hunters have been asking for, all wrapped up in a design that is both intuitive and highly capable. NocPix has delivered a great new scope, but it is not lightweight, weighing in at 50 ounces with the mount.

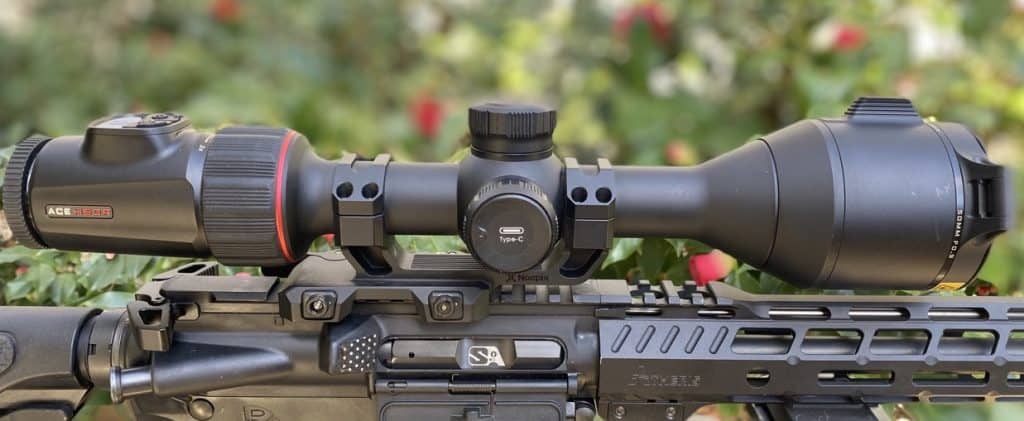

The ACE is meant to feel familiar, like a traditional day optic. It’s a tube-type scope compatible with both bolt-action and semi-automatic rifles using standard 30 mm mounts and rings. But what really sets it apart is how thoughtfully it’s built and the ease of use. The LRF is built into the front lens, it has digital or ocular zoom and the image is as good as any I have seen in a 640 resolution thermal scope.

Inside the eyepiece, you’ll find a 2560×2560 round AMOLED display, paired with a 1-3x optical magnifier. This setup gives you a crystal-clear view without any reticle shift or the degradation of digital zoom. Add to that the Vision+ system, which uses a 15 mK NETD sensor and you’ve got a superior 640 image.

One standout feature is the built-in 1,200-yard laser rangefinder, which is integrated directly into the objective bell with the 50 mm germanium lens. This cuts down on bulk and ensures better alignment between the laser and the viewing system - practical and sleek.



Key Features and Specifications

Unparalleled Image Quality

The Ace H50R boasts a 640x512 sensor with a 12-micron pixel pitch and a less-than-15-millikelvin sensitivity. I have used many types of 640 resolution thermal scopes and this one is of the most precise 640 imaging devices I have used. The clarity and detail provided are exceptional. The image is combined with the large 2560×2560 AMOLED viewing screen giving you a brilliant image with a lot of detail.

Using the ACE H50R right out of the box without any image adjustments, the image was great. My first hunt happened so quickly that I never had a chance to adjust the scope in the field. See the short hunting clip below.

Dimensions and Detection

• Length: 13.4 inches
• Weight: 50 ounces with mount & 18650 battery
• Objective Lens Diameter: 50mm
• Field of View: 12.4° x 9.3° (65'x48' at 100 yards)
• Detection Range: Up to 2,500 yards (human-sized target)
• Housing Material: Aluminum alloy with an IP67 rating for water and dust resistance.
• Full Specs below



Built-In Laser Rangefinder (LRF)

A standout feature of the Ace H50R is its integrated laser rangefinder built directly into the objective bell, ensuring accuracy and the cleanest design on the market. Capable of measuring distances up to 1,200 yards, it is accurate and reliable.

There is no add-on LRF unit or a big ugly laser module on top of the objective lens. This is one of the best features of the new ACE and a definite improvement over other brands of LRF scopes. However, this LRF is not battery-friendly. If you run the scope in continuous mode like many hunters do, it will cut your battery run time in half.

During long coyote hunts when we were running the LRF in continuous mode, we were draining an 18650 in less than 90 minutes. Turning off the continuous LRF mode doubled the run time.



Ballistic Calculator

The NocPix Ace H50R has a ballistic calculator integrated with the LRF, which is a powerful tool for long-range shooting. It works by allowing users to input ballistic data of their cartridge into the ballistic calculator. Based on this information and the range measured by the LRF, the calculator automatically provides an adjusted aiming point on the reticle. This ensures accurate shot placement, even over extended distances, minimizing the need for manual adjustments.

When you range a target, the scope will display a second reticle with proper hold over/under. The second aiming reticle appears about 30 seconds, then disappears, but that is plenty of time to take a shot. I tested the LRF at 400 yards using a 6.5 Grendel which has a lot of drop ( 34" at 400 yds). I thought if it worked with such a slow-velocity cartridge, it would be even better for most hunters using faster-velocity cartridges.

I did the test during the day with only a small hand warmer as my target. I was really impressed with the ability of the H50R image to allow me to see the small hand warmer as well as the results of the Ballistic Calculator. Even at 400 yards, the calculator was consistently accurate. I found that it is hard to compensate for the wind, but the ballistic calculator of the ACE H50R was spot on.

The parameters you need to set up the calculator is the bullet ballistic coefficient and velocity. It works by calculating additional holdover from your vertical setting after you zero the scope for your rifle. There is no parameter necessary for zero range.

The critical factors are knowing the actual velocity and ballistic coefficient of your bullet. Most ammo is slower than the velocity printed on the box, and velocities listed in reloading manuals are no better. In a standard hunting rifle with 20-22" barrel, expect the velocity to be 100-200 FPS slower than advertised on the box.

If possible, chronograph your loads. Bullet ballistic coefficients are listed on manufacturers' websites or in loading manuals. Most 55-grain .224 caliber bullets used in 22 centerfire rifles have a BC of about .240. The BC of most 6mm bullets for varmint hunting will run between 300 and .400.

Dual Battery System

The scope features a dual power system: an internal rechargeable battery complemented by two replaceable 18650 batteries. This setup allows for extended operation, ensuring you never run out of power during critical moments - if you bring along several 18650 batteries.

The Ace H50R has a lot of systems to feed, and it does use more power than most thermal scopes. It is supposed to have a runtime of 7 hours, and that may be stretching it in cold weather.  We used the continuous LRF mode during our hunts, so an 18650 lasted about 1.5 hours. The good thing is that 18650's are cheap and they are quick to replace without powering down the scope. The internal battery will last 3-4 hours after the 18650 is depleted.

It will automatically switch to internal power when the 18650 battery is depleted and back to the 18650 when a fresh 18650 is installed. Two 18650 batteries are included with the scope.

NocPix Ace H50R Ocular Zoom

Ocular Zoom Ring

The Ace H50R offers 3-24X digital magnification, paired with a 1- 3x optical zoom. This dual zoom system provides flexibility for close-range and long-distance targeting, catering to varying user preferences.

The digital zoom is adjusted using the controller knob on top of the scope. As you turn the controller, the scope zooms in 1/10th power increments from 3-24X. Digital zoom cuts resolution quickly on a digital scope. Moving from 3X to 6X will cut your resolution in half.

Ocular zoom magnifies the image up to 3 times the base magnification, or up to about 9X. It works well, and using the ocular magnification allowed me to see a small hand warmer at 400 yards in the daytime. The scope has an ocular zoom ring in front of the eyepiece, like the zoom ring on a traditional glass rifle scope.

The Ocular magnification zooms in on the display screen. The Ocular zoom has less pixelization than digital zoom, but it limits the field of view. Magnifying the screen image draws the image closer so the target appears larger, but it also makes the reticle larger.

The drawbacks are that when using the ocular zoom, the field of view is sharply reduced, and your reticle is magnified, making aiming more difficult for small targets like coyotes at long range. We found that for coyote hunting, using the digital zoom worked better.

On the positive side, the view screen is very large compared to other scopes, so it is easier to take shots on base power without zooming. Also, the image is so good that you can use the digital zoom and still have a great image. You can zoom in small increments, say from 3X base mag to 20X, and still have a usable image.

Connectivity, Streaming & Video

The H50R includes Wi-Fi streaming, video recording, and audio capabilities, allowing you to video and share your experiences effortlessly. The audio is exceptional. It recorded the sound of bullets hitting a plastic target 400 yards away.

The video downloaded from the Ace H50R is not in the familiar aspect ratio. It is round. When you view it on a computer screen, it is blacked out except for a circle in the center. It's like I have been taken back to the 1950s, watching TV with a round screen.

Viewing vertically on a cell phone is not as noticeable, but it still cuts off all the corners of the video. It stays the same size when you rotate your phone. I do not know if this change is supposed to aid social media posts for Reels and YouTube shorts, or if it has something to do with improving image quality.



Hunting With The NocPix ACE H50R



Hunting with the ACE H50R was a pleasure. So much so that I never noticed the heavier-than-normal weight. It lives up to all the claims with a beautiful image, an accurate range finder, a ballistic calculator, and easy operation.

In testing, the Ace H50R demonstrated remarkable performance. Its pinpoint accuracy, courtesy of the integrated LRF and ballistic calculator, was evident during both static and dynamic shooting scenarios. The image quality held up exceptionally well, even under challenging conditions.

The image is better than most 640-resolution scopes, about the same as the InfiRay RH50/RH50R. The very large 2560×2560 AMOLED display makes thermal hunting a grand experience. Everything is easier to see, and targets are easier to hit!

This scope seems to be designed for coyote hunters. Doug stacked up a lot of coyotes during our hunts, but I liked it just as well for hog hunting. The 3X magnification is perfect for any kind of hunting. The great image and ballistic calculator make long shots much easier. Overall, the H50R has everything to make every hunt enjoyable.

Pros and Cons

Pros

Integrated Laser Rangefinder and Ballistic Calculator: The Ace H50R features a built-in laser rangefinder seamlessly integrated into the 50mm germanium objective lens, enhancing alignment and reducing bulk. Coupled with a ballistic calculator, it aids in accurate long-range shooting.

High-Resolution Thermal Imaging: Equipped with a <15 mK NETD sensor and a 2560x2560 round AMOLED display, the scope delivers detailed thermal images, allowing users to distinguish fine details even at distances beyond 200 yards.

Optical and Digital Zoom Capabilities: The Ace H50R offers both optical and digital zoom, with a 1-3x ocular magnifier providing additional magnification without reticle shift or digital zoom degradation. This ensures clear target acquisition at various distances.

User-Friendly Design and Controls: Designed to resemble traditional day optics, the scope is compatible with standard 30mm mounts. It features simplified controls for improved ergonomics, including easily accessible buttons for power, rangefinding, and video recording.

Dual Battery System for Extended Use: The combination of an internal USB-C rechargeable battery and an external 18650 rechargeable battery allows users to hot-swap batteries in the field, ensuring extended operational time during hunts

Cons

• Video format does not lend itself to producing content for YouTube.
• Short battery life while running continuous mode LRF.
• The unit is heavy at 50 ounces


Final Thoughts - NocPix ACE H50R LRF

The Nocpix Ace H50R is a feature-rich thermal scope that excels in nearly every aspect. Its superior image quality, innovative features like the integrated LRF, and robust performance make it a top choice for serious hunters and shooters. While its price point is on the higher side for 640-resolution thermal scopes, the value it provides justifies the cost.

If you don't mind a little extra weight and carrying along a few extra 18650 batteries on long hunts, the new NocPix Ace H50R will make you a deadly coyote hunter. The image rivals scopes of higher resolution, and everything works perfectly as it should.

If you break it, IRayUSA backs it with a 5-year, 5-day turnaround warranty. It will be hard to find a better 640 thermal rifle scope on the market. NocPix has a winner with the Ace H50R.

Key Features:

• High-Resolution Thermal Sensor: 640×512 & 12μm pixel pitch for clear imaging.
• Integrated LRF: Built-in Laser Rangefinder with 1200m distance range.
• Reality+ and Vision+ Systems: Advanced image processing for superior clarity.
• Long Battery Life: Operates for up to 7 hours with a built-in 4000mAh & 18650 battery.
• Versatile Magnification: 3× to 24× magnification with a 50mm F0.9 objective lens.
• AMOLED Display: 2560×2560 resolution for crisp visual performance.
• Photo/Video/Audio Recording: Capture essential moments in the field.
• WiFi & App: Remote connectivity for easy control and sharing.

Specifications:

Ingress Protection: IP67 (Weatherproof)
Thermal Sensor: 640×512 & 12μm
NETD: ≤ 15mK|
Frame Rate: 60Hz
Objective Lens: 50mm F0.9
Field of View: 8.8x7.0 / 15x12° @100m
Magnification: 3× to 24× (Ocular zoom: 1× to 3×)
Detection Range: 2600m
Battery: Built-in 4000mAh & 18650
Max Operation Time: 7 hours
Memory: 64GB
Weight: 50 oz
Dimensions: 14.4" x 3.5"
LRF Ranging Distance: 1200m
Ballistic Calculation: Yes
Recording: Photo/Video/Audio
WiFi & App: Yes

Thanks for reading our NocPix Ace H50R Thermal Rifle Scope Review

Shop NocPix Thermal Optics at Outdoor Legacy

I am writing this in March of 2025. Right now, the NocPix Ace H50R LRF Thermal Scope is usually in stock at Outdoor Legacy. If you want a new NocPix Thermal Scope, call Jason at Outdoor Legacy at (877)350-1818. If it is out of stock you can get on the waiting list with a $100 deposit. Jason will take the time to help you decide what thermal scope or other night vision optic is best for your hunting needs.
