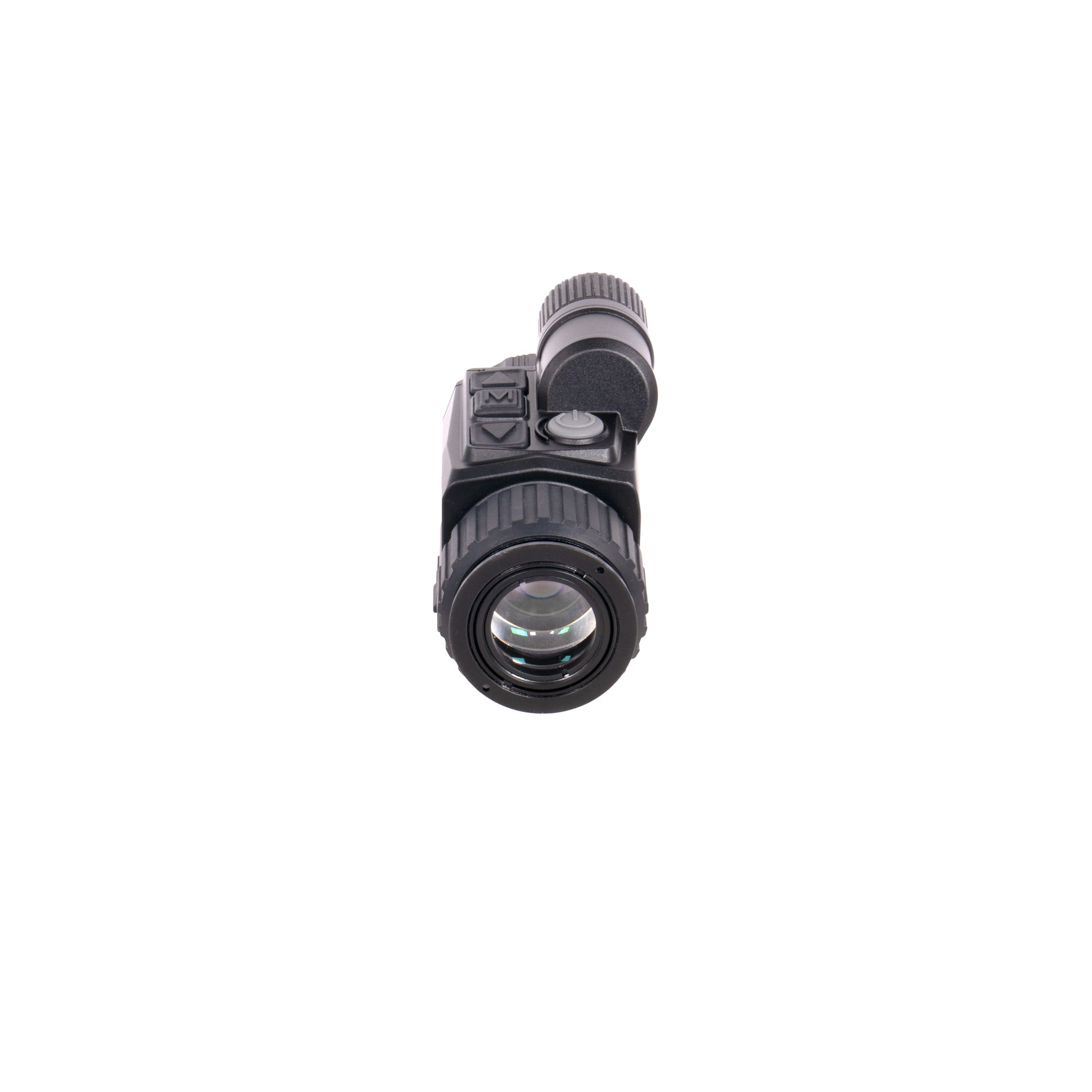

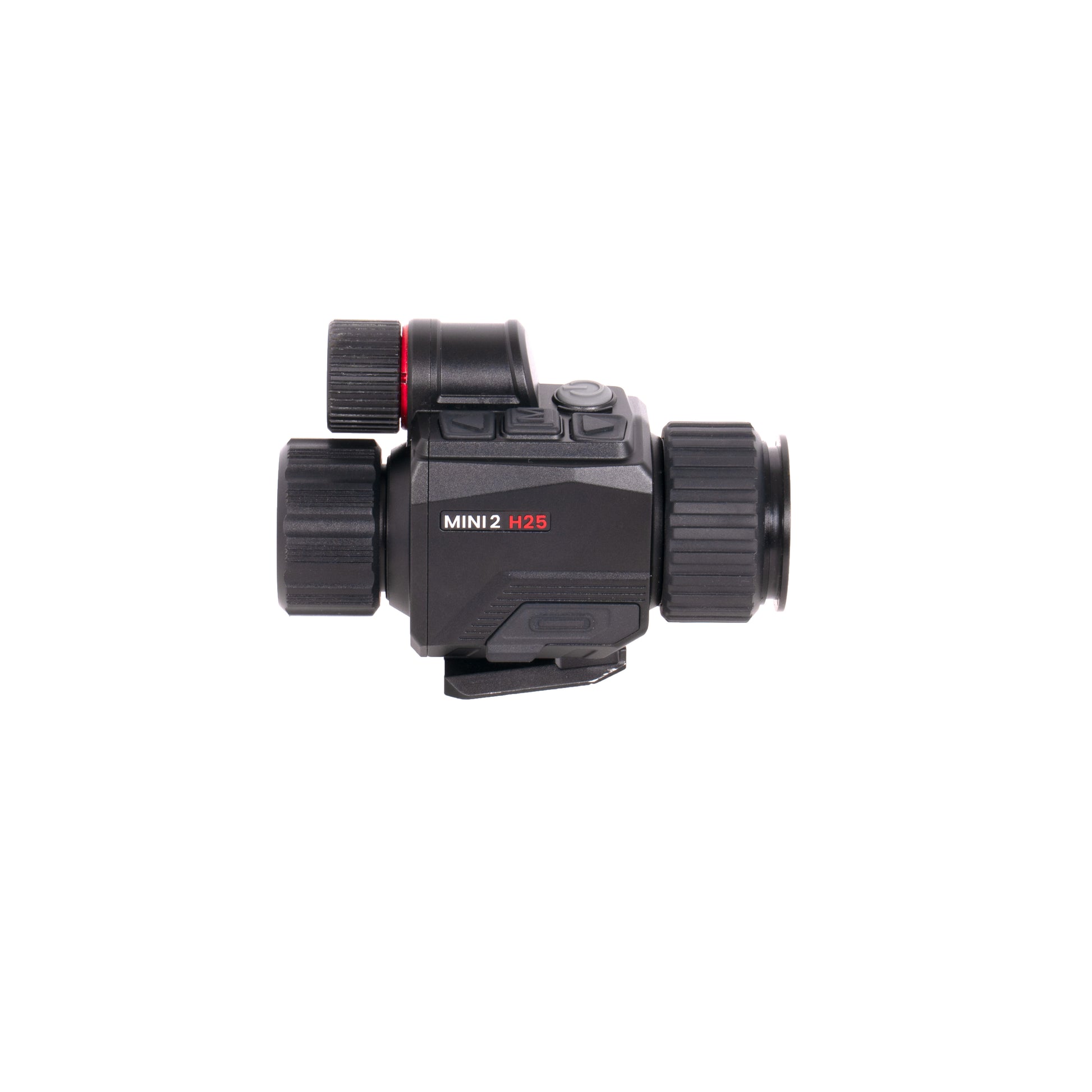

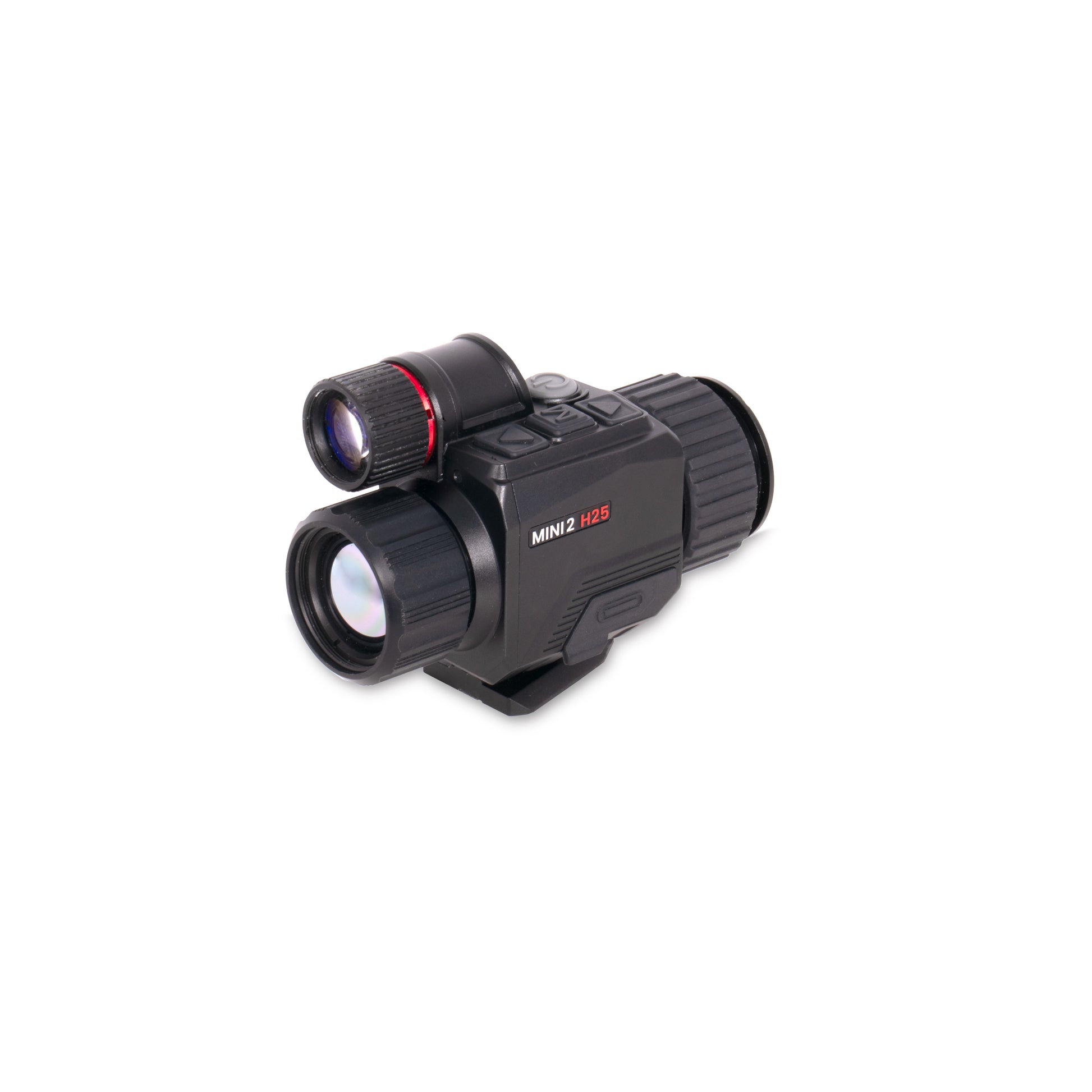

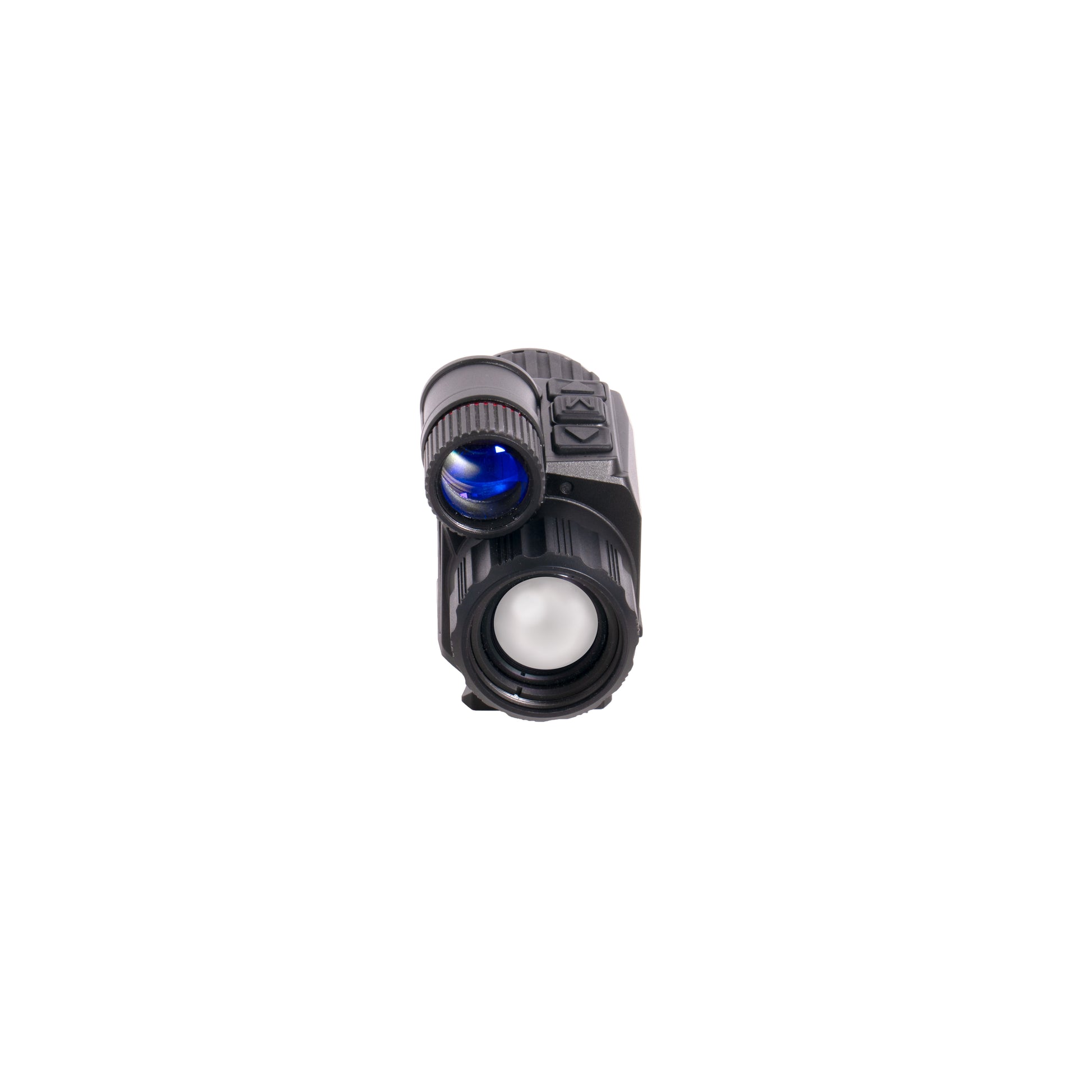

The Nocpix MINI2 H25 is a compact, lightweight thermal imaging device engineered for both handheld and helmet-mounted operation. Its versatile design enables seamless transition between use as a handheld monocular and integration with a helmet-mounting system for hands-free applications. Equipped with a high-performance 60 Hz, 12 μm thermal sensor and advanced Reality+ image processing, the MINI 2 delivers exceptional image clarity and detail across a wide range of conditions. The system features a 640×512 resolution thermal core paired with a 1280×1024 AMOLED display, providing a sharp, high-contrast viewing experience within a highly portable form factor. In addition to thermal imaging, the MINI2 incorporates digital night vision functionality with optional thermal overlay, allowing users to utilize fusion imaging for enhanced target recognition and situational awareness. The device also includes onboard audio and video recording capabilities, supported by 32 GB of internal storage, enabling users to capture, store, and review critical moments directly from the unit.

• Resolution: 640x512
• Pixel Pitch: 12 micron
• Refresh Rate: 60hz
• NETD: <15mk
• Display: 1280x1024
• Base Magnification: 1x
• Digital Zoom: 4x
• Field of View: 92ft @ 100 yards
• LRF: No
• *Detection Range (6ft Tall Object): 1,420 yards
• Battery Type: Nocpix External Battery Pack
• Battery Run Time: 7 Hours (with Batter Pack)
• Video/Audio Recording: Yes
• Streaming App: Yes
• Color Palettes: White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
• Waterproof Rating: IPX67
• Weight: 8.47oz
• Dimensions: 4.00”x1.72”x2.54”

*Detection range is NOT the same as ID range. For ID ranges and other detailed information please give us a call.
