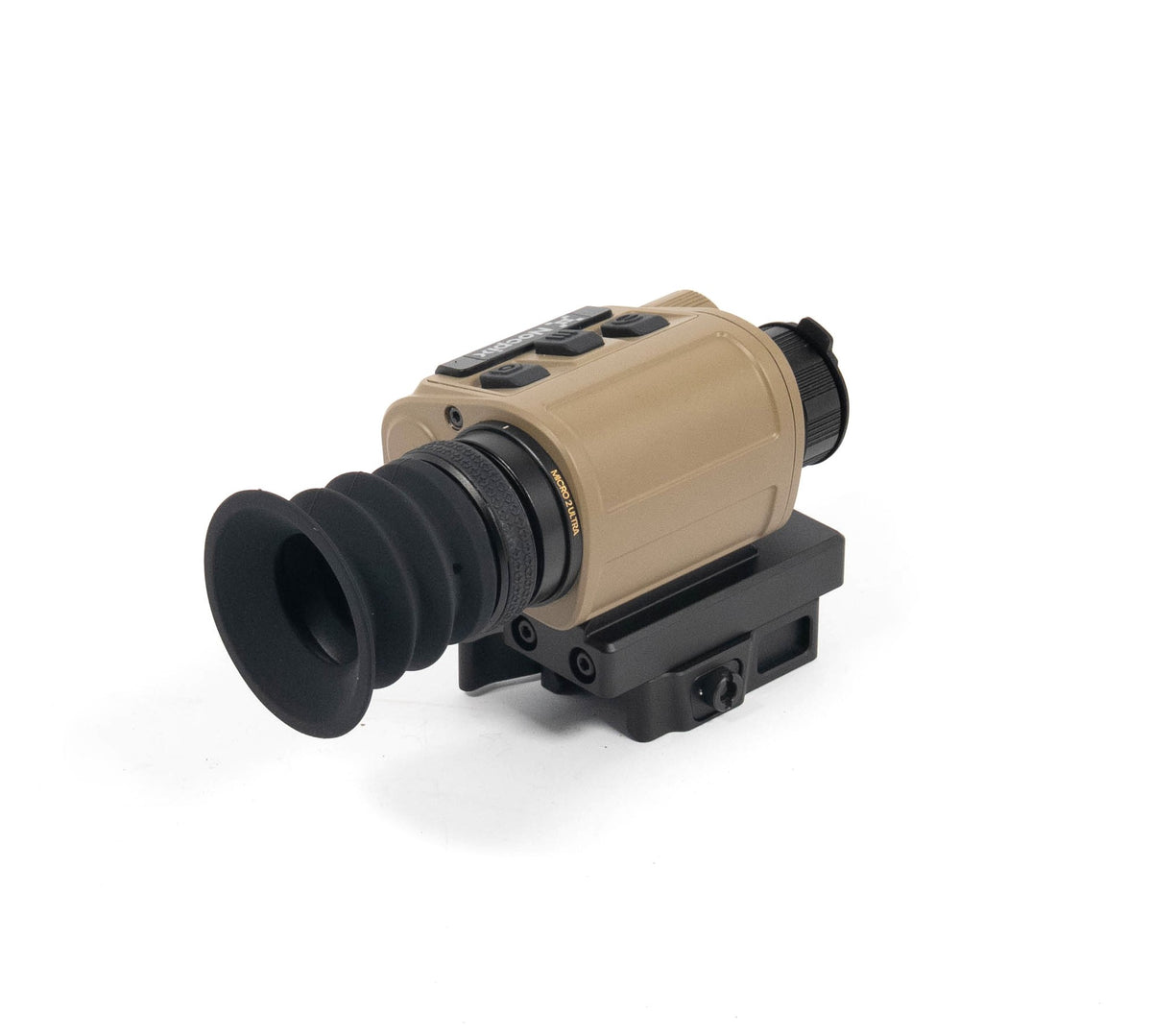

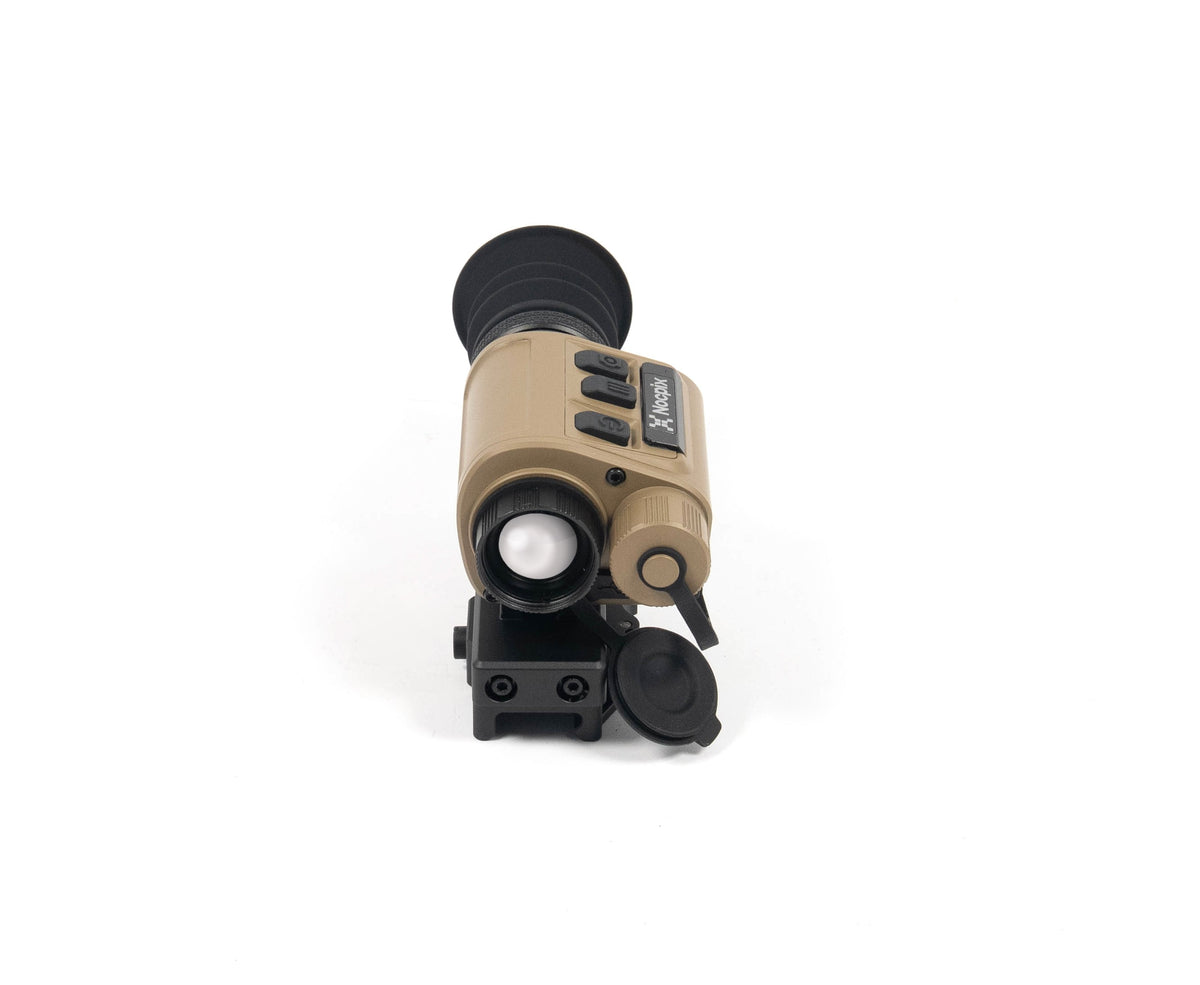

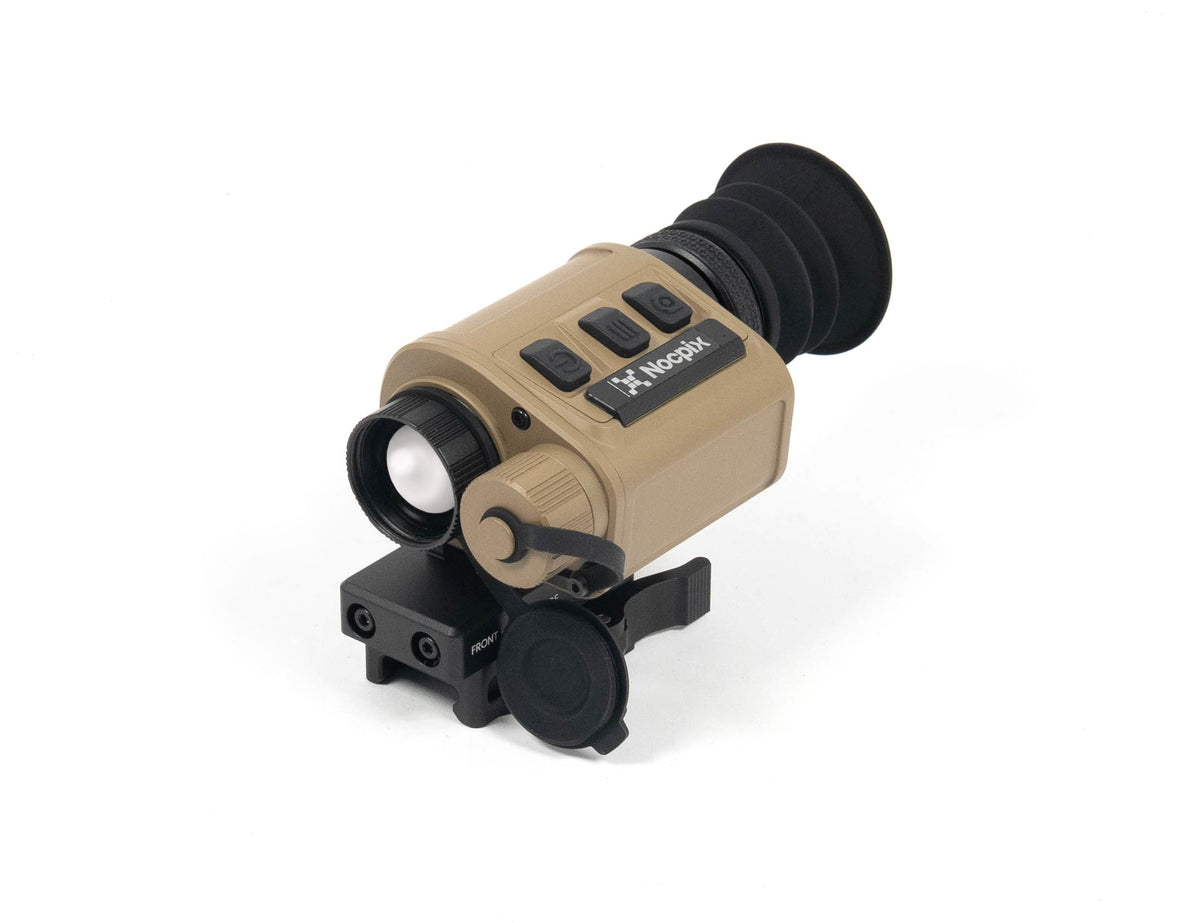

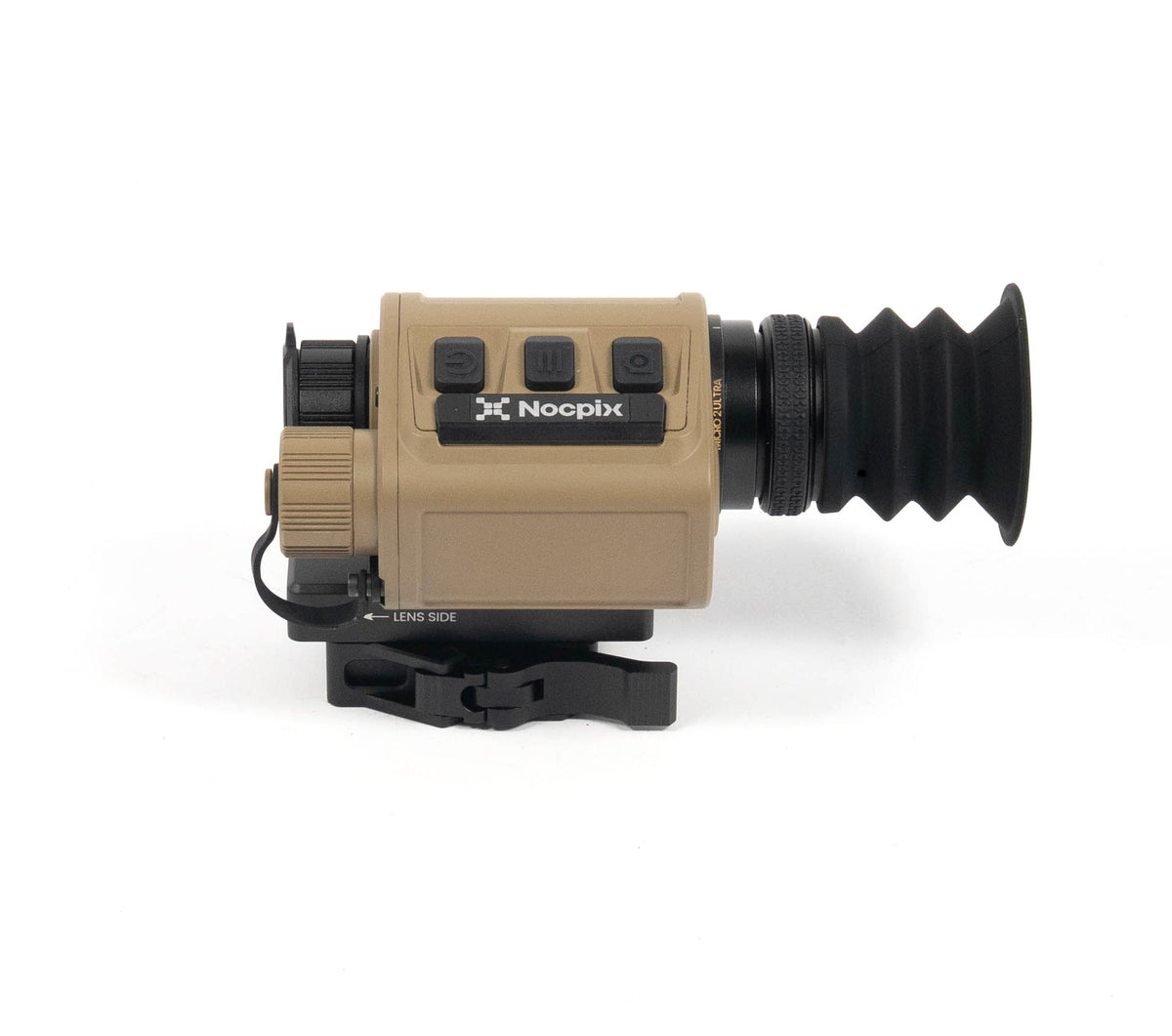

The MICRO 2 ULTRA is a next-generation 4-in-1 thermal platform that works as a helmet-mounted monocular, clip-on, handheld scanner, or dedicated weapon sight. It is the smallest 1280 thermal optic on the market and the first 1280 helmet-mounted thermal monocular. Its 1280 × 960 sensor captures 4× the pixels of its predecessor, the RH25 V2's 640× 480 sensor. The MICRO 2 more than doubles the RH25 V2's display, jumping from 1440 × 1080 to a razor-sharp 2560 × 2560 (nearly 4.7× the pixels), delivering a sharper, more detailed image that holds up at higher digital zoom and makes it easier to pick out fine thermal detail.  The 34.2° × 25.9° ultra-wide field of view is roughly double the 17.5° × 13.1° typical of helmet-mounted thermals and comes close to the roughly 40° of a PVS-14, which makes it a strong fit for thermal binocular and dual-band builds. FastEngine low-latency architecture keeps latency over 100% lower than conventional 1280 thermal systems, and a 60 Hz refresh rate keeps the image smooth during movement. In clip-on mode it supports day optics up to 10× (up from 6× on the RH25 V2), with a reworked zeroing process and UI. Dual-Link pairs two units into a single binocular system controlled from one master unit, while NV Highlight and NV Outline modes simplify the thermal image for cleaner fusion with night vision in dual-band setups. Standalone use adds Picture-in-Picture, which keeps the full field of view live while opening a magnified window around the target and reticle. Across all modes, you get a simplified UI, 1080p recording, 64GB of onboard storage, cold-weather batteries rated to -40°F, and IP67 water and dust resistance.

• Resolution: 1280x480
• Pixel Pitch: 12 micron
• Refresh Rate: 60hz
• NETD: <15mk
• Display: 2560x2560
• Base Magnification: 1x
• Digital Zoom: 8x
• Field of View: 180ft @ 100 yards
• LRF: No
• Ballistic Calculator: No
• *Detection Range (6ft Tall Object): 1,375 yards
• Battery Type: Removable 18650 battery
• Battery Run Time: 6+ hrs (Approximate)
• Recoil Rating: .300 WIN. Mag/7mm Mag
• Video/Audio Recording: Yes
• Streaming App: Yes
• Single Shot Zero: Yes
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Mount Included: Yes – iRay Non QD
• Waterproof Rating: IPX67
• Weight: 12.9oz
• Dimensions: 4.45”x2.52”x2.05”

*Detection range is NOT the same as ID range. For ID ranges and other detailed information please give us a call.
