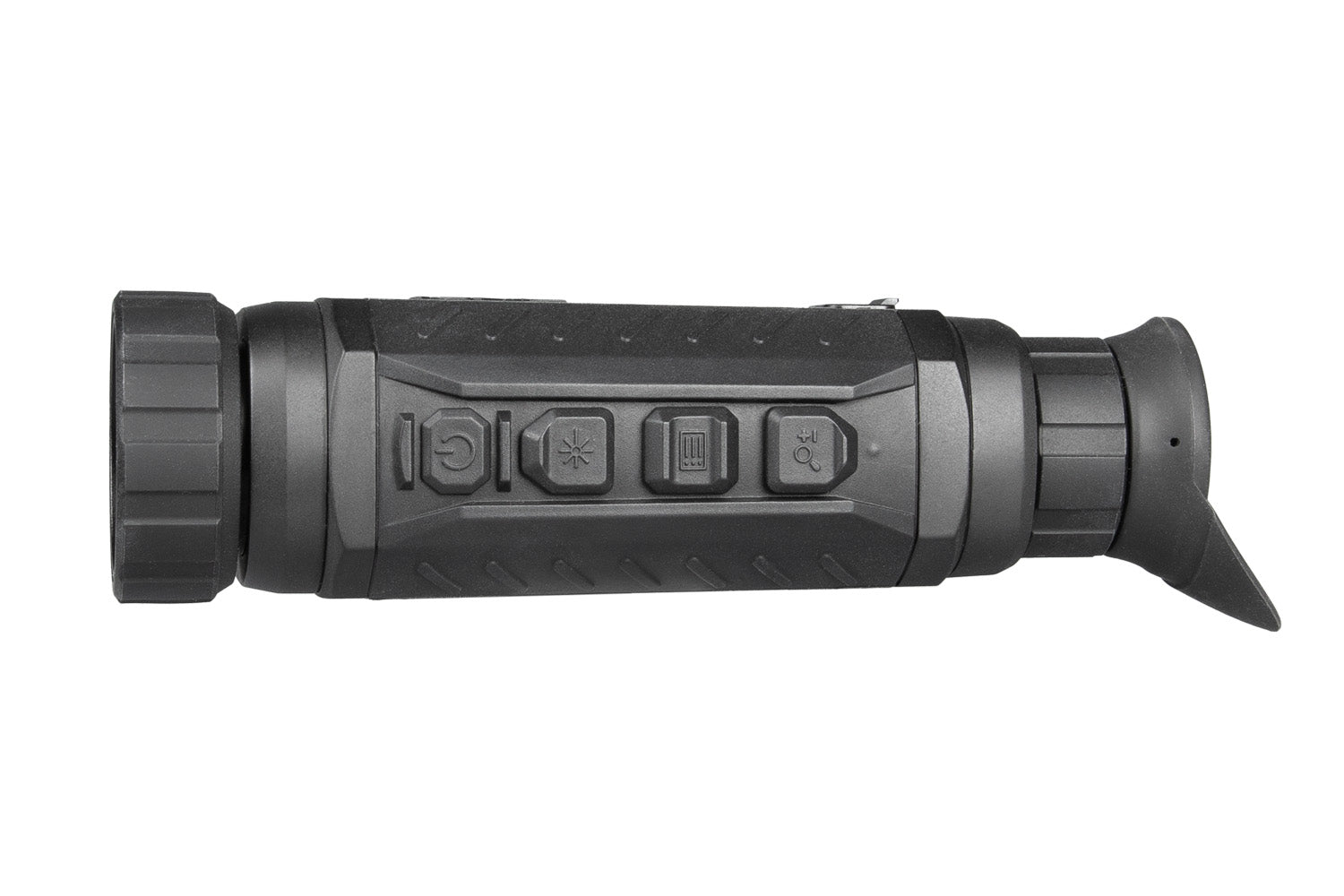

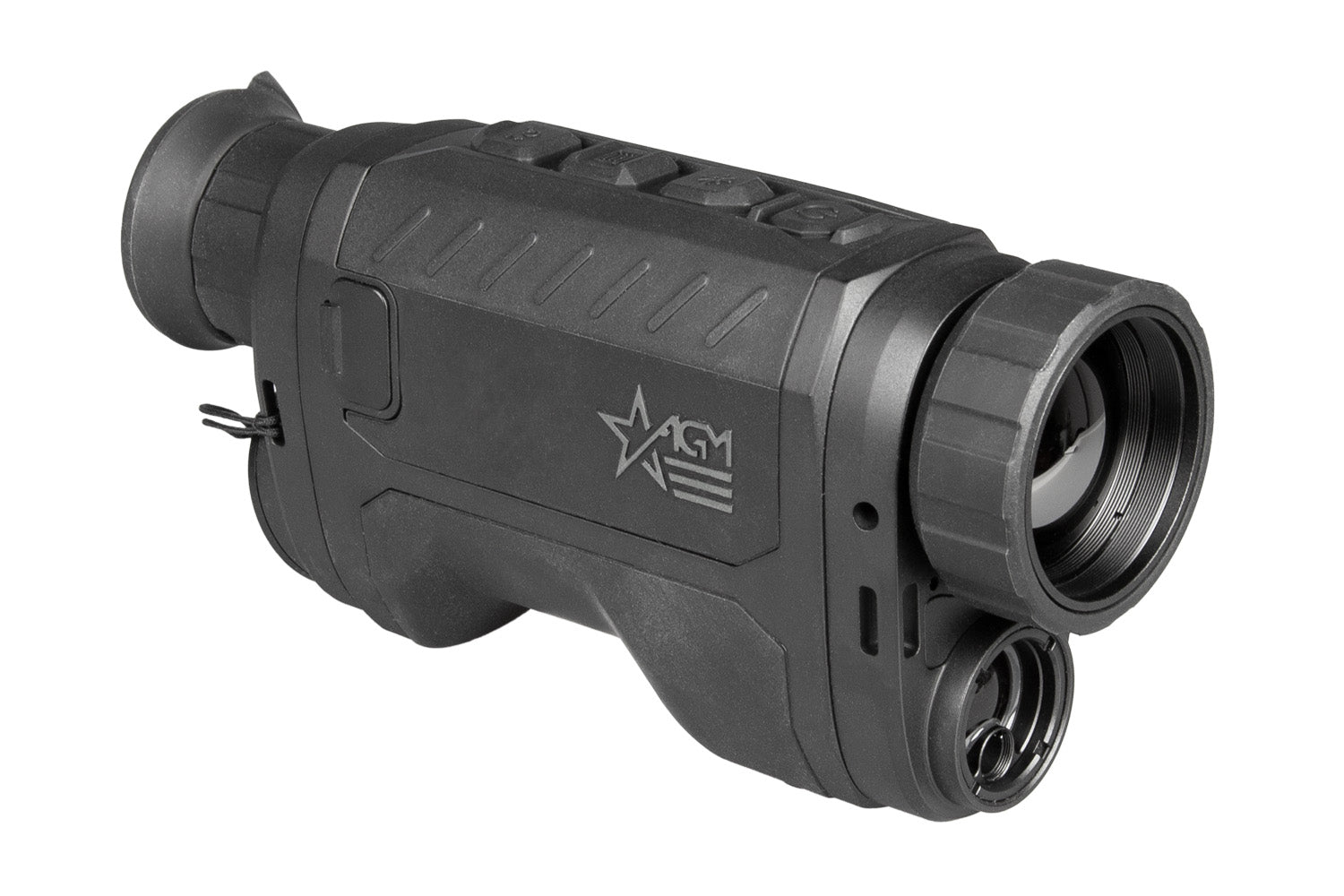

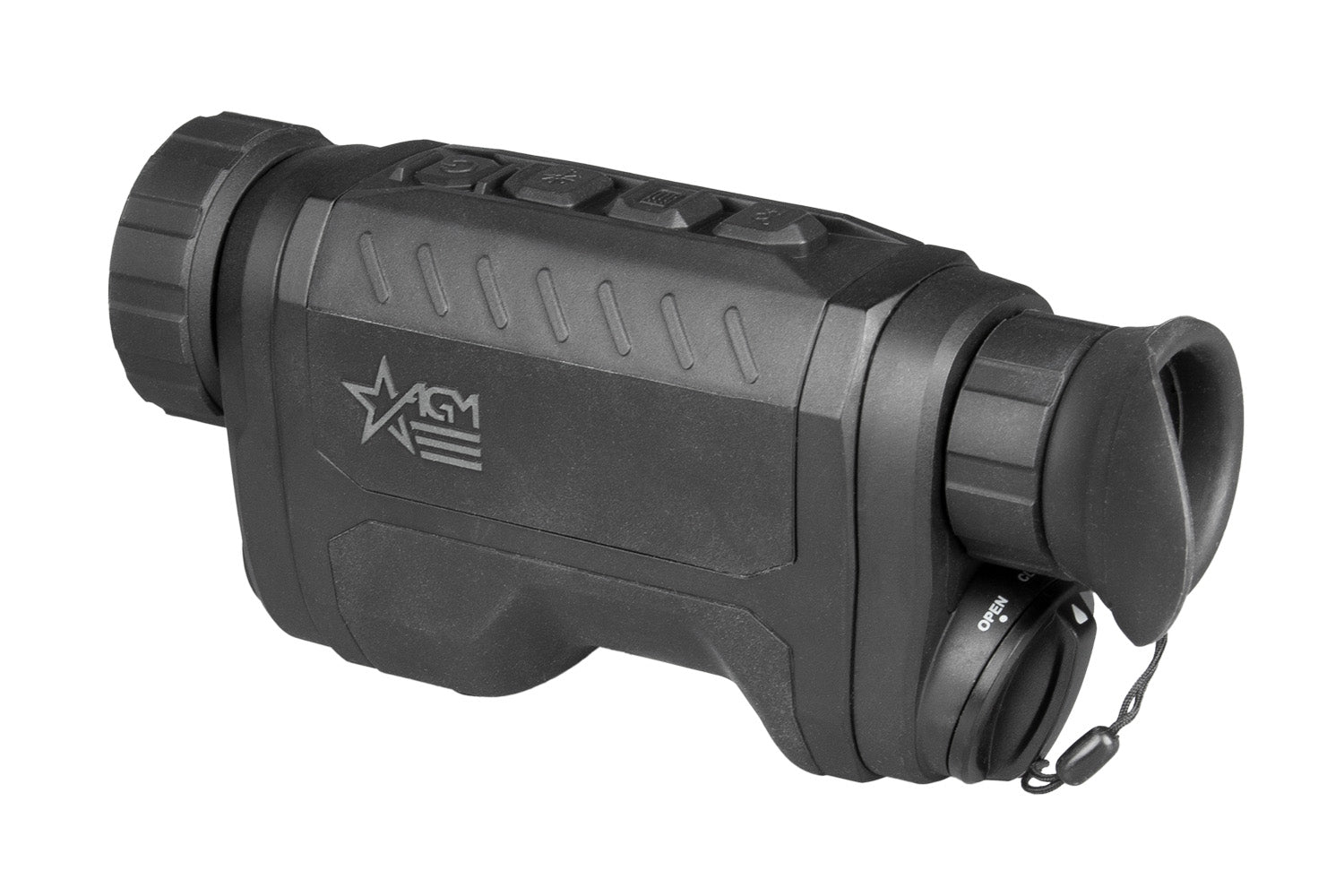

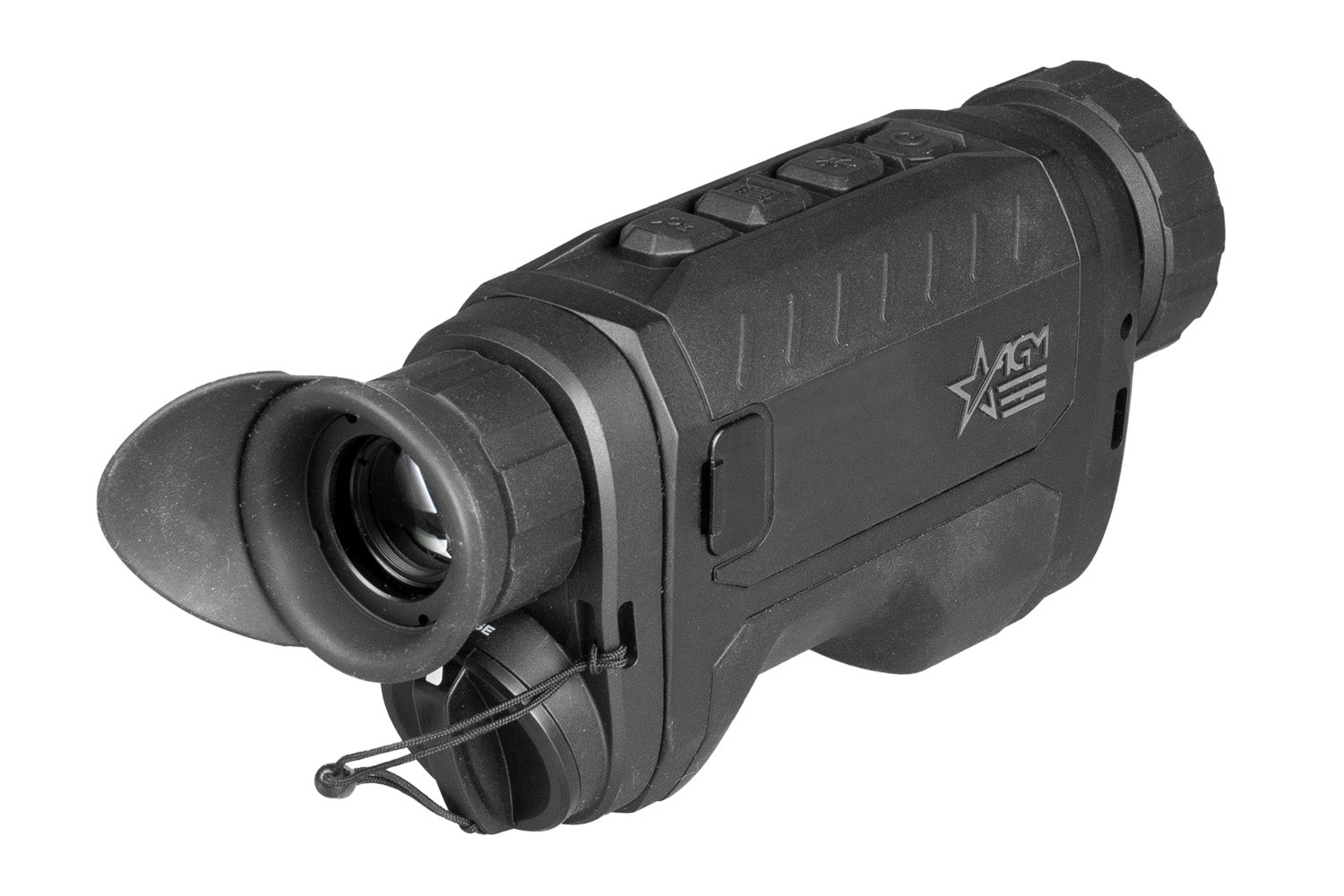

The ReachIR is new premium handheld observational thermal monocular series. All models come equipped with twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The ReachIR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other important options include a 1,000-meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.
New optimized image processing algorithms give thermal monocular highly optimized images and remarkable details. The ReachIRs built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video/audio
recording and image capture.
- 12μm, high-sensitivity thermal detector (NETD < 20mK)
- 640x512 resolution
- Fast 50 Hz imaging
- Built-in 1,000-meter laser rangefinder
- New optimized image processing algorithms
- 1x, 2x, 4x, 8x digital zoom
- 1024×768 resolution, 0.39-inch OLED display
- Vide/audio recording and image capture
- 64 GB built-in memory
- Wi-Fi hotspot
- Standby mode
- Replaceable and rechargeable 18650 Lithium battery
- Up to 4 hours continuous running
- Auto screen-off function
- Robust magnesium alloy housing
- Waterproof
- 5-Year Warranty
- Detector type: 12 μm VOx Uncooled Focal Plane Arrays
- Resolution: 640 × 512
- Refresh Rate: Sensor 50Hz
- Response Waveband: 8 μm to 14 μm
- Lens (focal length): 35 mm
- Field of view (H × V): 12.5° × 10.0°
- Optical magnification: 2.0x – 16x
- Digital zoom: 1x, 2x, 4x, 8x
- Observation Distance: 1,800 m
- Monitor: 1024x768, 0.39 inch, OLED
- FFC (Flat Field Correction): Auto, Manual, External Correction
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- Highest Temperature Spot Tracking: Yes
- Scene Mode: Yes
- Laser Rangefinder: Up to 1,00 m, ±1 m accuracy
- Laser Wavelength: 905 nm
- WiFi Hotspot: Yes
- Standby Mode: Yes
- Picture In Picture Mode (PIP): Yes
- Storage: Built-in 64 GB EMMC
- Record Video: On-board video recording
- Capture Snapshot: Yes
- Battery Type: One 18650 (3.7V) Lithium Rechargeable Battery
- CVBS Output: Yes (via USB Type C)
- Battery Operating Time: 4.5 hours (WiFi and LRF Off)
- Battery Capacity Display: Yes
- External power supply: 5 VDC/2 A, USB Type-C
- Operating Temperature Range: -30°C to 55°C (-22°F to 131°F)
- Protection Level: IP67
