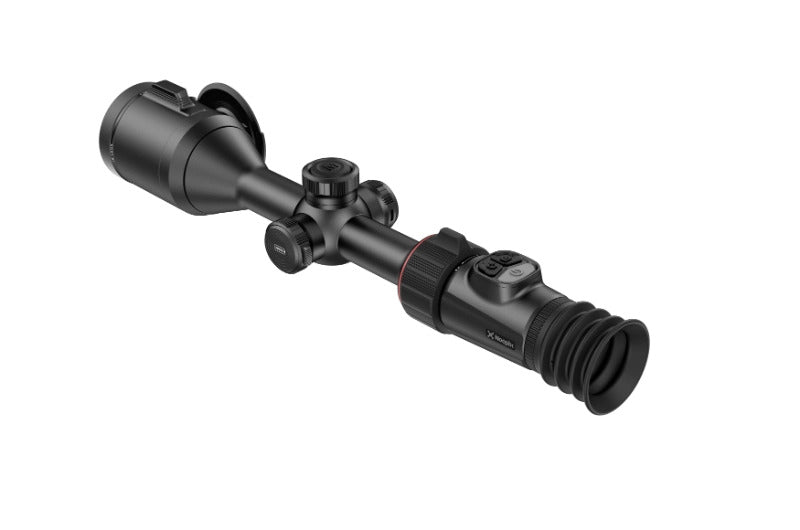

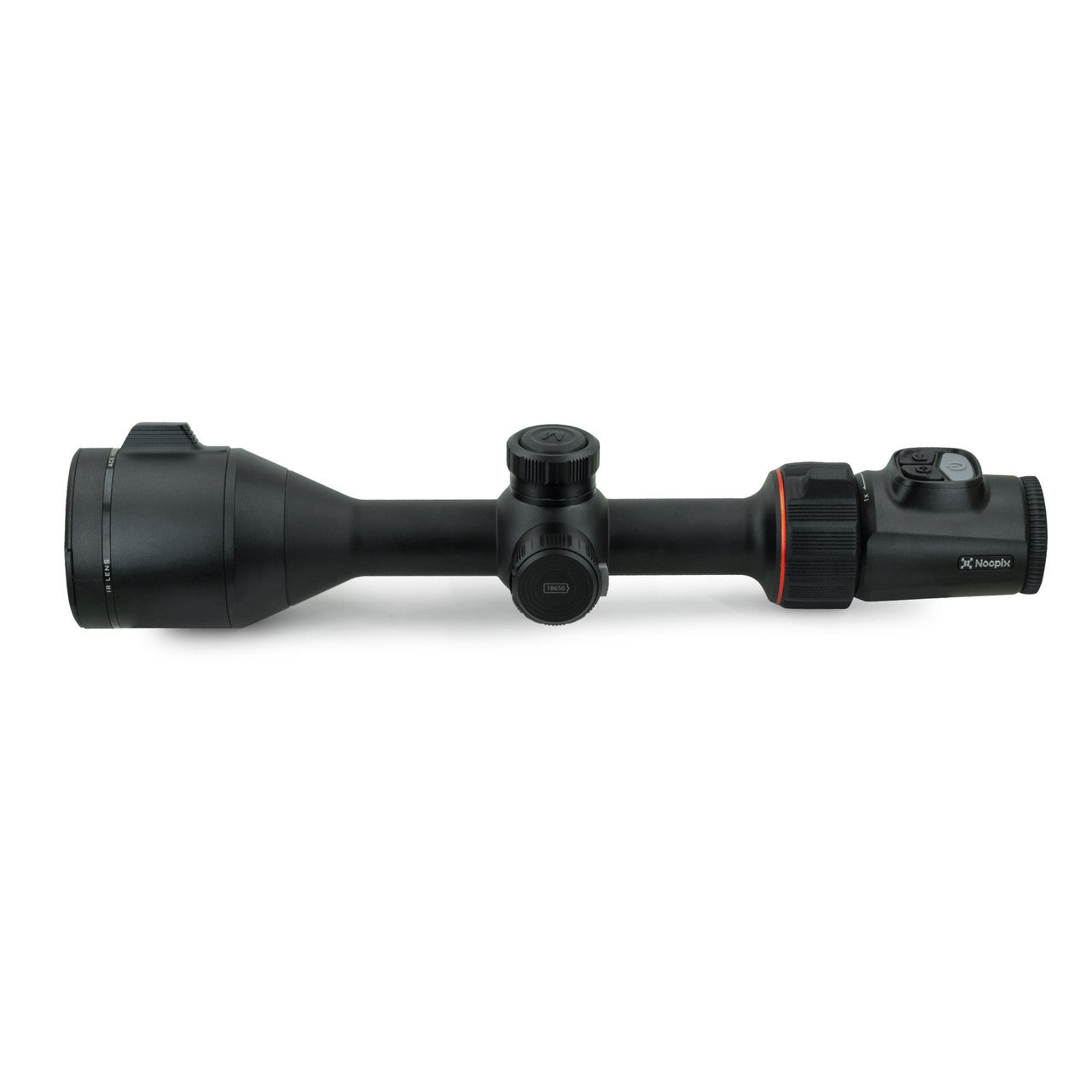

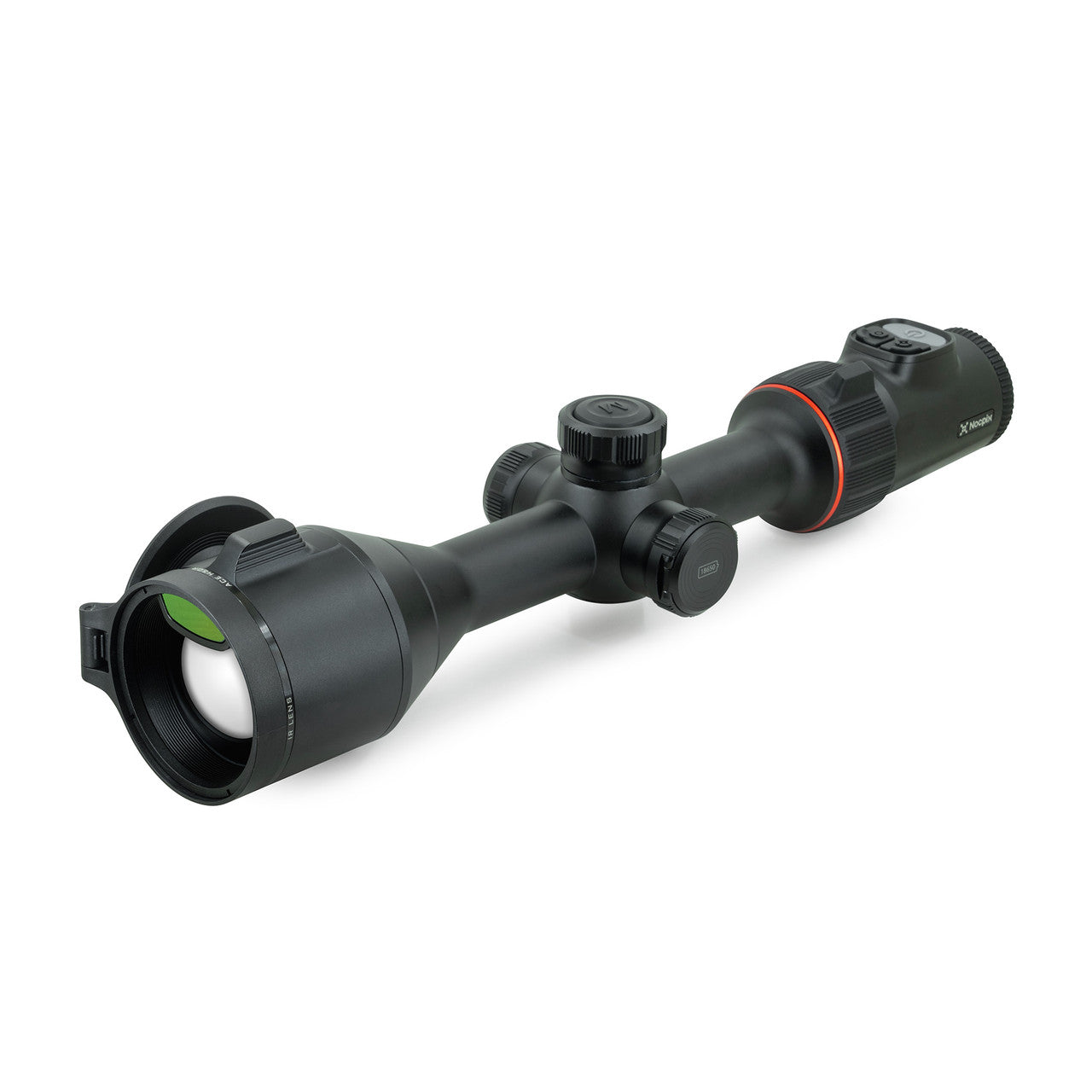

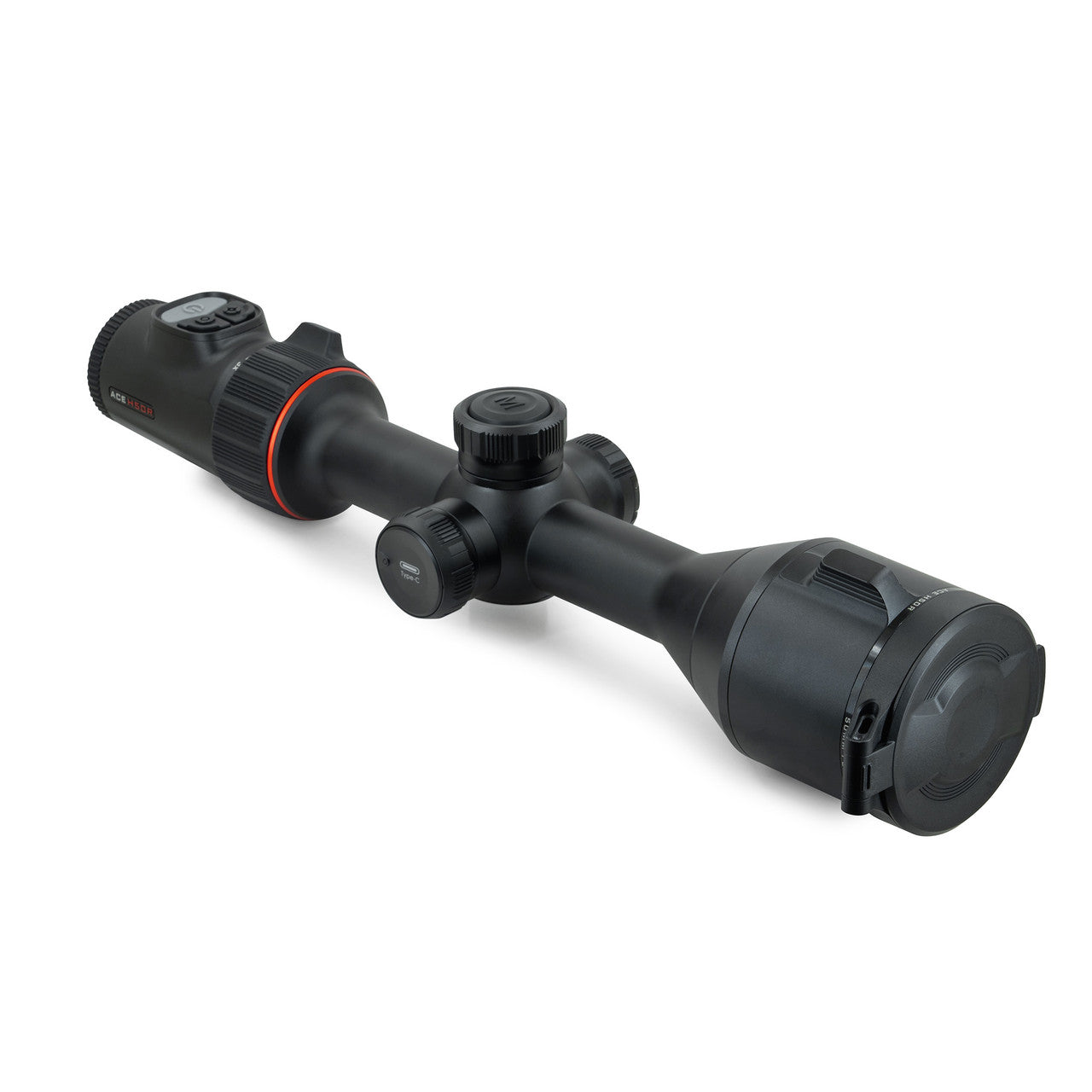

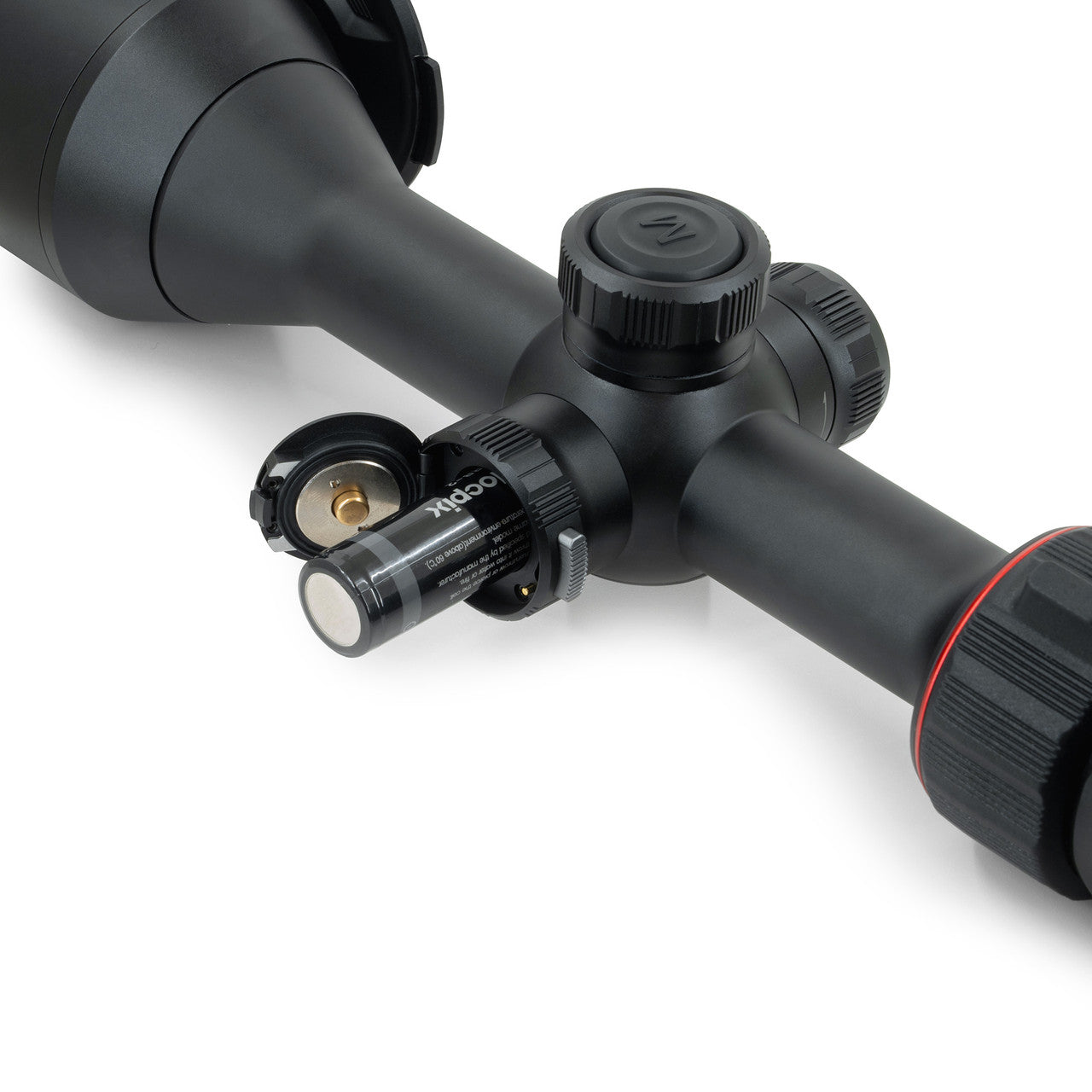

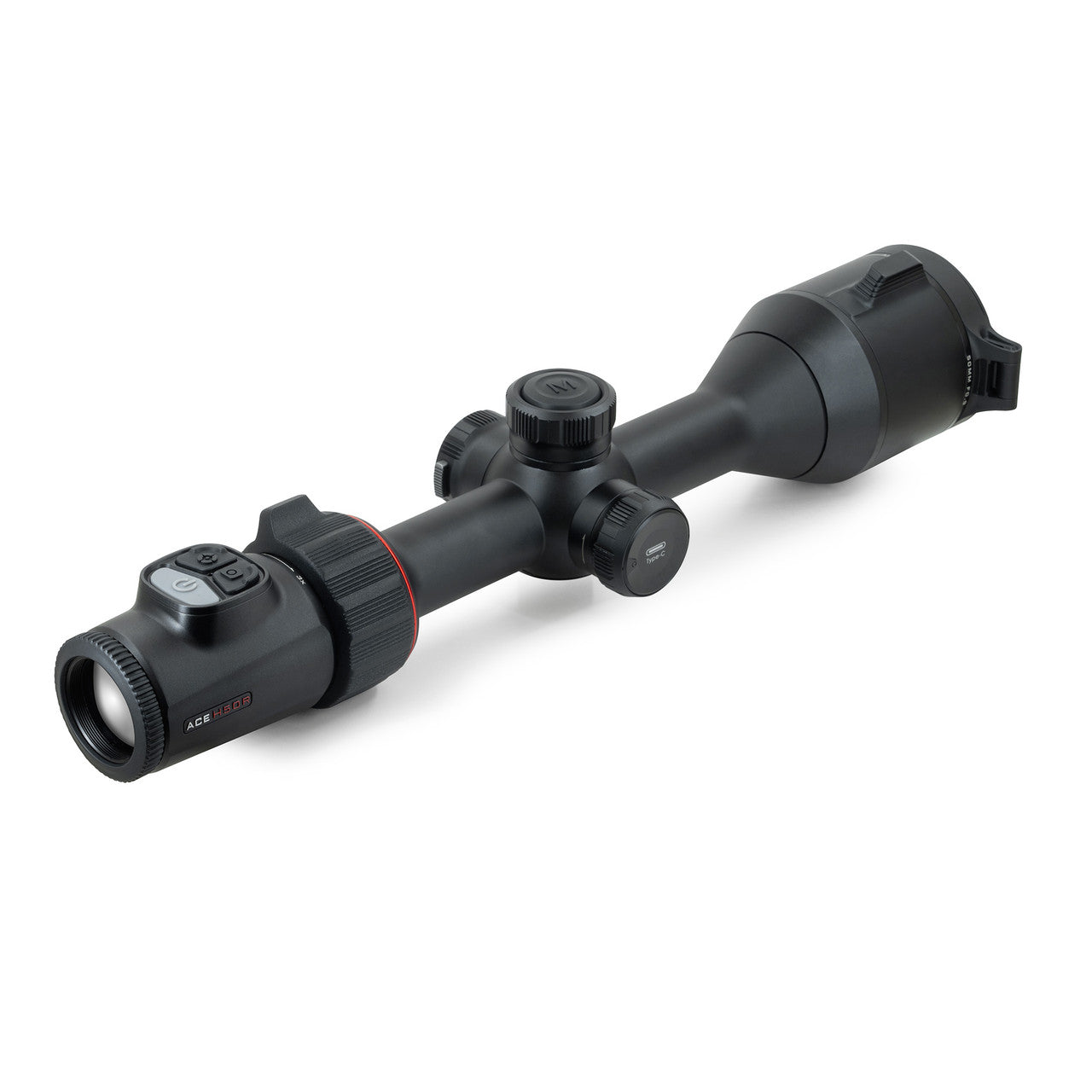

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560x2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image. The 1,300 yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

• Resolution: 640x512
• Pixel Pitch: 12 micron
• Refresh Rate: 60hz
• NETD: <15mk
• Display: 2560x2560
• Base Magnification: 3x
• Digital Zoom: 24x
• Field of View: 46ft @ 100 yards
• LRF: Yes
• Ballistic Calculator: Yes
• *Detection Range (6ft Tall Object): 2,850 yards
• Battery Type: Internal 18650 and an external 18650 battery
• Battery Run Time: 3 hrs removable/4 hrs internal (Approximate)
• Recoil Rating: .300 WIN. Mag./ 7mm Mag.
• Video/Audio Recording: Yes
• Streaming App: Yes
• Single Shot Zero: Yes
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
• Mount Included: Yes – Nocpix 30mm QD Mount
• Waterproof Rating: IPX67
• Weight: 2lb 7.5oz
• Dimensions: 14.37”x3.54”x2.68”

*Detection range is NOT the same as ID range. For ID ranges and other detailed information please give us a call.
